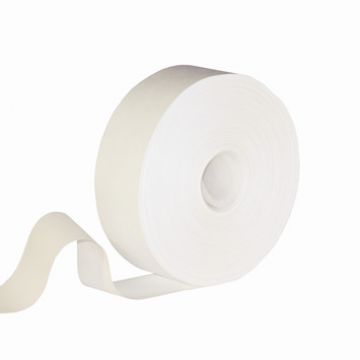

0.45μm Sterilization liquid filtration membrane of hydrophilic PVDF（VF series）

Technical Data

Product Model	X1100 X2100	X1040 X2040	X1020 X2020	X1010 X2010
Pore Size (μm)	1.0	0.45	0.22	0.10
Absolute Ethanol First Bubble Pressure (MPa) Orifice Model Data*	0.03 0.008*	0.06 0.015*	0.12 0.03*	0.16 0.05*
Water Flow Rate (m³/m²·hr@20KPa, 25℃)	6.0	3.0	2.0	1.0
Reinforcement Material	Non(1), PP(3),?PET(4),
Thickness (μm)	70 ~ 200

Explanation:

1. Product implementation standard: QB/T02-2008 "PVDF microporous membrane"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material?
